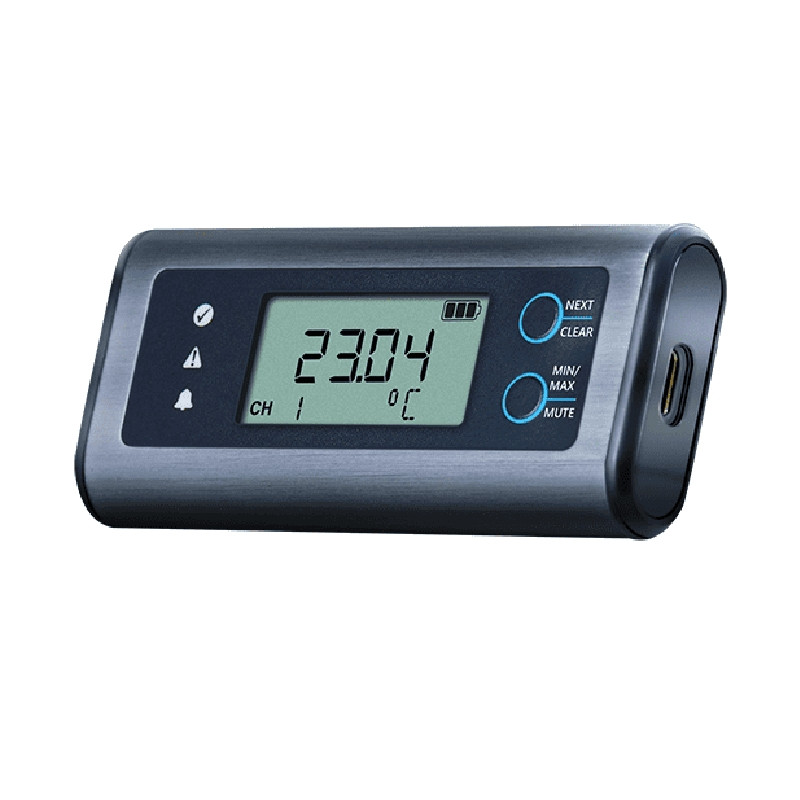

EasyLog | EL-SIE-1+ USB Temp Data Logger -18 to +55°C

EasyLog | EL-SIE-1+ USB Temp Data Logger -18 to +55°C

Monitor the environment you live and work in with the EasyLog EL-SIE-1+. Configuration is simple, with no software to install on your PC or Mac – just connect the logger with a USB cable, and use your standard web browser to configure the device for logging. You don’t even need internet access to set up and use the EL-SIE-1+, it really couldn’t be easier. The logging interval can be set between 10 seconds and 24 hours, with immediate, delayed, triggered or push-to-start logging. Alarms are fully user configurable, with functionality including cumulative alarms, pre-alarms, a delay before alarm triggering, and an alarm hold option, which continues showing the alarm condition even if the reading returns to an acceptable level. The display shows current, maximum and minimum readings, and three coloured LEDs indicate device status at a glance. Once logging is complete, re-connect to your computer and use your browser to view, analyse and save your data. You can also choose to upload your data to an Easy Log Cloud account, making the data accessible online for powerful graphing, analysis and report generation.  Typical battery life is over 1 year using standard AAA alkaline batteries, and a wall mounting bracket is supplied with the device.

Specification

 KEY FEATURES

• Simple-to-use, configurable and precise temperature sensors and data loggers
• Monitor the ambient temperature of living and working environments
• Range: -18°C to +55°C
• Two models vary in regards to their accuracies
• Log in excess of 1 000 000 readings
• Selectable logging intervals between ten seconds and twenty-four hours
• Immediate, delayed, triggered or push-to-start logging
• Program up to sixteen user-specified alarms
• Options for cumulative alarms, pre-alarms, delayed alarm triggers and alarm hold
• Alarm hold: freezes the display to retain data from when the alarm was triggered
• Onboard alarm sounder (EL-SIE-1+ ONLY)
• Alarm indicator on the display
• Three coloured LEDs on the display indicate the status of the instrument
• View current, minimum and maximum readings via the display
• Easy to setup
• Additional software is not required
• Plug into a PC/ Mac using a USB cable and configure using a standard web browser
• Internet connection is not required for configuration
• Configure the logger and channel names, measurement units, logging rate and start mode, alarm thresholds, alarm delays and holds, and display and LED indicator modes
• Plug the logger into a PC to view logged data, the event log, and the unit’s status
• View, analyse and save data via a web browser
• Data can be saved to the EasyLog Cloud
• Loggers can be stopped or reconfigured on reconnection to a PC/ Mac
• Battery life: up to a year using AAA alkaline batteries
• Supplied with a wall mounting bracket
• Versatile, configurable and reliable temperature monitoring and logging systems

What’s Included

• Your Choice of FilesThruTheAir EL-SIE-1 OR EL-SIE-1+ Temperature USB Data Logger
• 2x AAA 1.5V Alkaline Batteries
• EL-SIE Wall Mounting Bracket
• USB A to USB C Cable
